P 5 Taxi LED Display , 192 x 64 Dots Custom-Made Taxi Top LED Display
Quick Detail:
1. 3G / WIFI control;
2. 960 × 320 mm screen size;
3. 1070 × 180 × 408 mm cabinet dimension;
4. Taxi status at front;
5. Taxi number at the back;
6. LEDEditor_V9 software.
Detail Description:

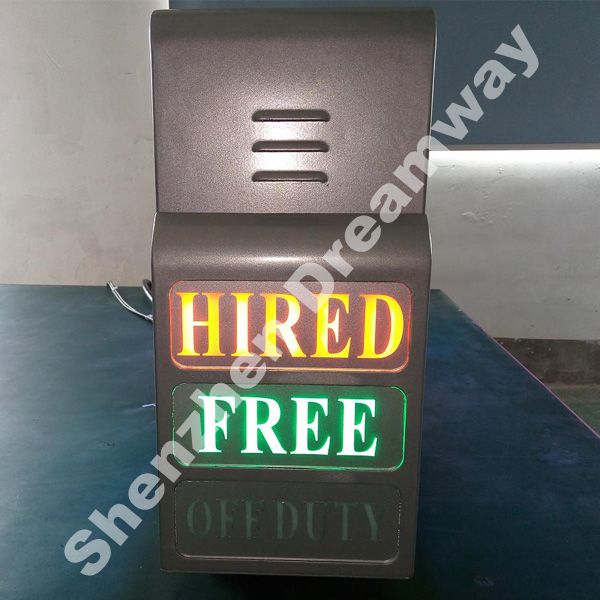

This cabinet is customized, with "HIRED" "FREE" "OFF DUTY" at one side, and "METRO TAXI" "MT121" on the other side, which are with different colors;
The controller we use is Xixun, with 3G control, could support WCDMA, CDMA2000 modes;
Roof rack to connect the display with taxi top could be equipped if you want us to provide for you together.
Application:
This taxi LED display would be used in Nigeria, providing a new advertising method in this country.
Specifications:
| Pixel Pitch | 5 mm |
| Resolution | 40,000 pixels/sq.m |
| LED Type | SMD3528 |
| LED Chip | EPISTAR |
| Display Resolution (Per Side) | W 192 × H 64 = 12,288 |
| Module Pixel | W 32 × H 32 |
| Module Size | W 160 × H 160 mm |
| Screen Size | W 960 × H 320 mm |
| Cabinet Size | W 1070 × H 408 × D 180 mm |
| Cabinet Material | Aluminum made, with acrylic glass at the two sides |
| Color | Silver |
| Weight | about 24 kg/pc |
| Driving Method | 1/8 scan constant current |
| Brightness | More than 3500 CD/sqm |
| Power Supply Voltage | DC12V |
| Output Voltage | DC5V |
| Video Formats | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV |
| Animation Formats | GIF, SWF |
| Picture Formats | JPG, BMP, WMF |
| Control Mode | 3G, WIFI, USB |
| Storage Memory | 500 MB and could be enlarged with USB |
| Operation Software | LEDEditor_V9 |
